Product Detail

Mode 2 Transmitter

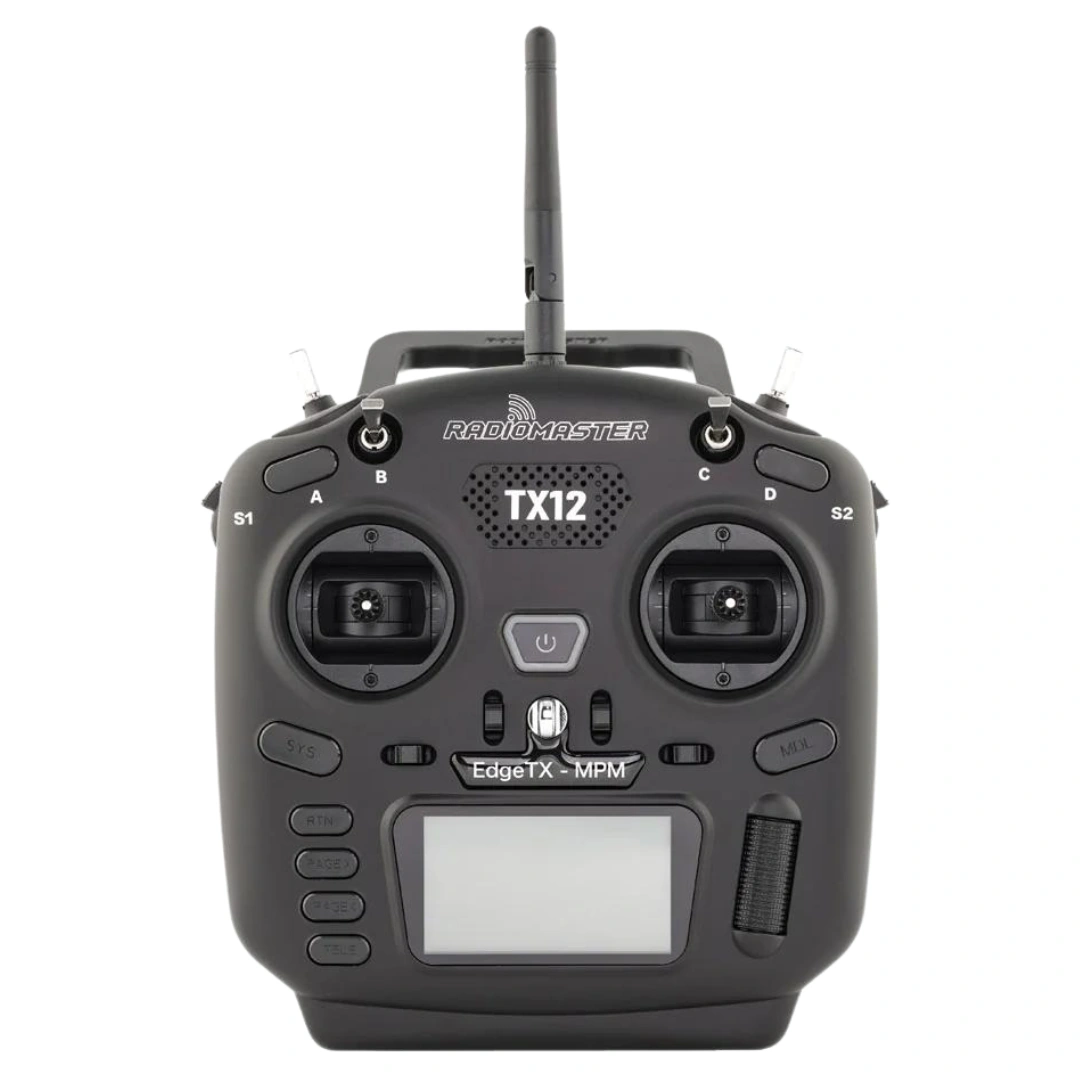

Working with the R/C community and open-source partners, RadioMaster proudly presents the TX12 MKII, a class-leading compact radio, with updated ergonomics, hardware, and software.

Features

• Added internal ExpressLRS module support
• Updated main board design from STM32F207 to STM32F407
• Improved USB-C QC 3.0 Charging

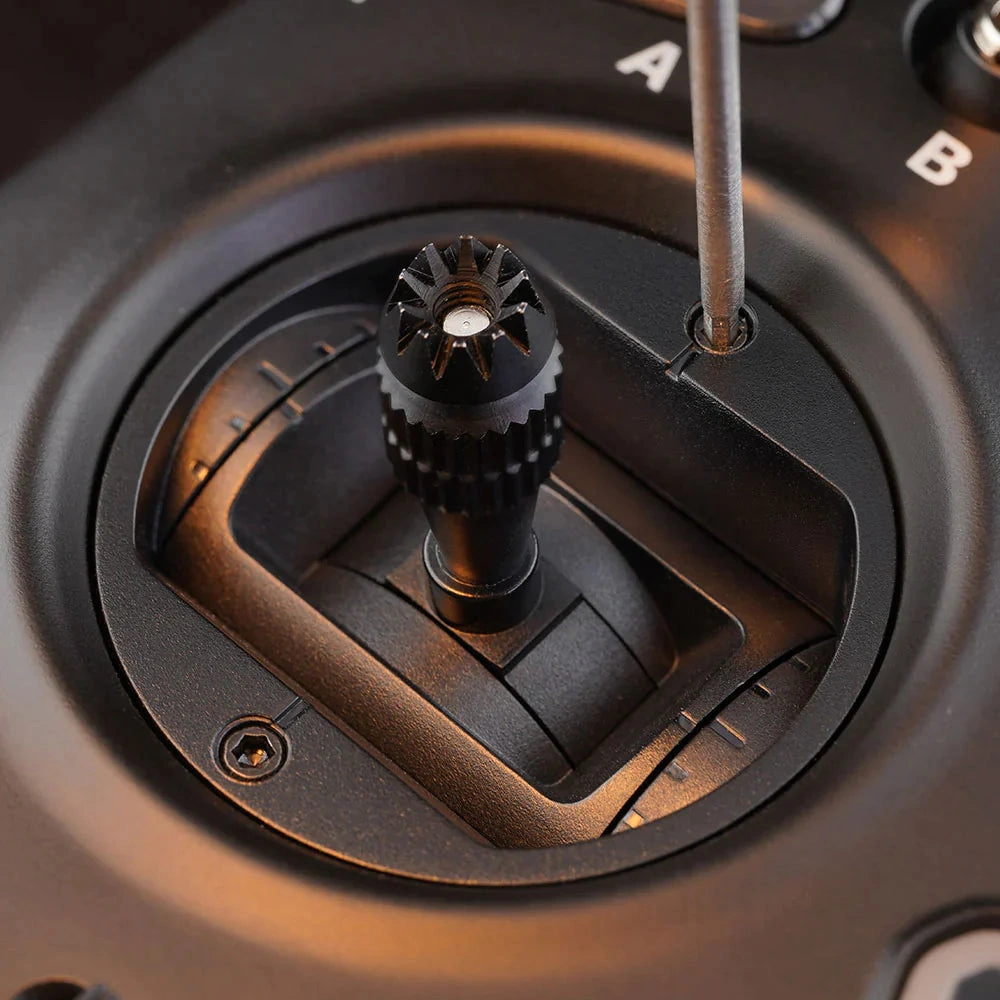

• Precision hall-effect gimbals as standard
• EdgeTX operating system installed from the factory

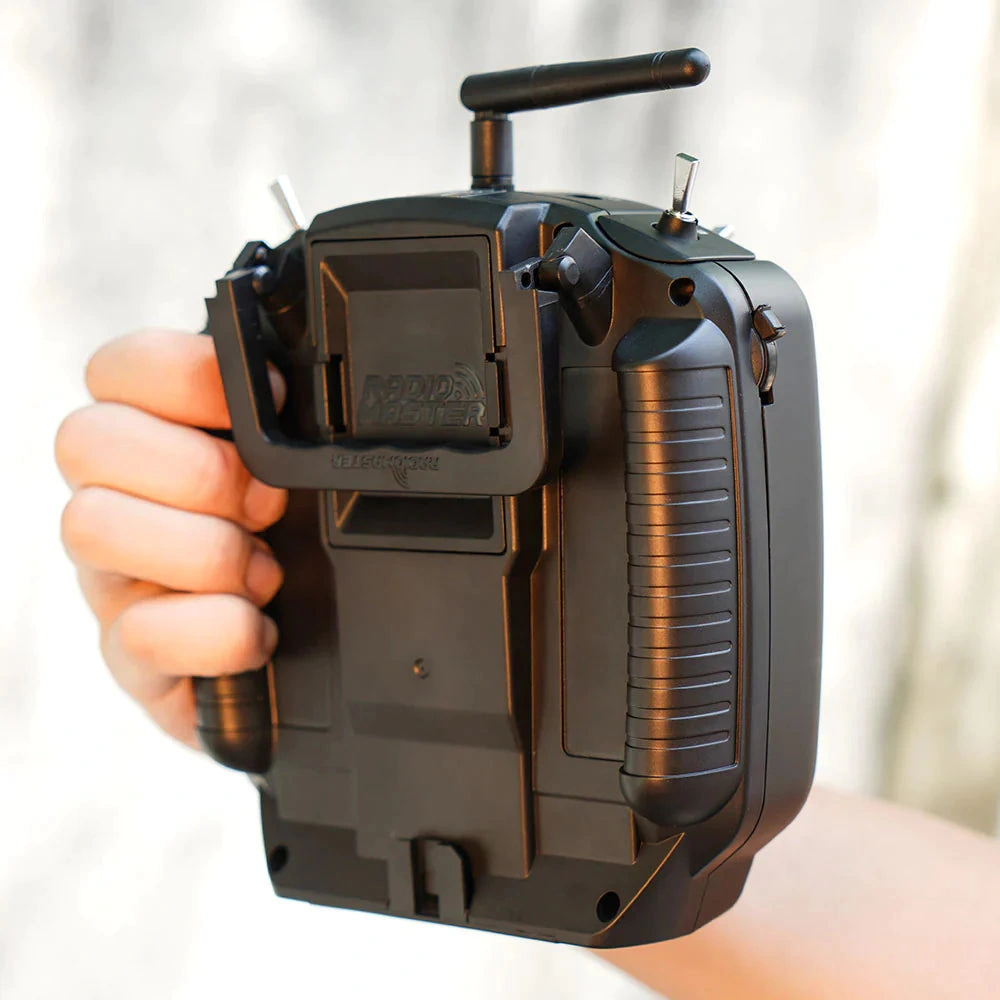

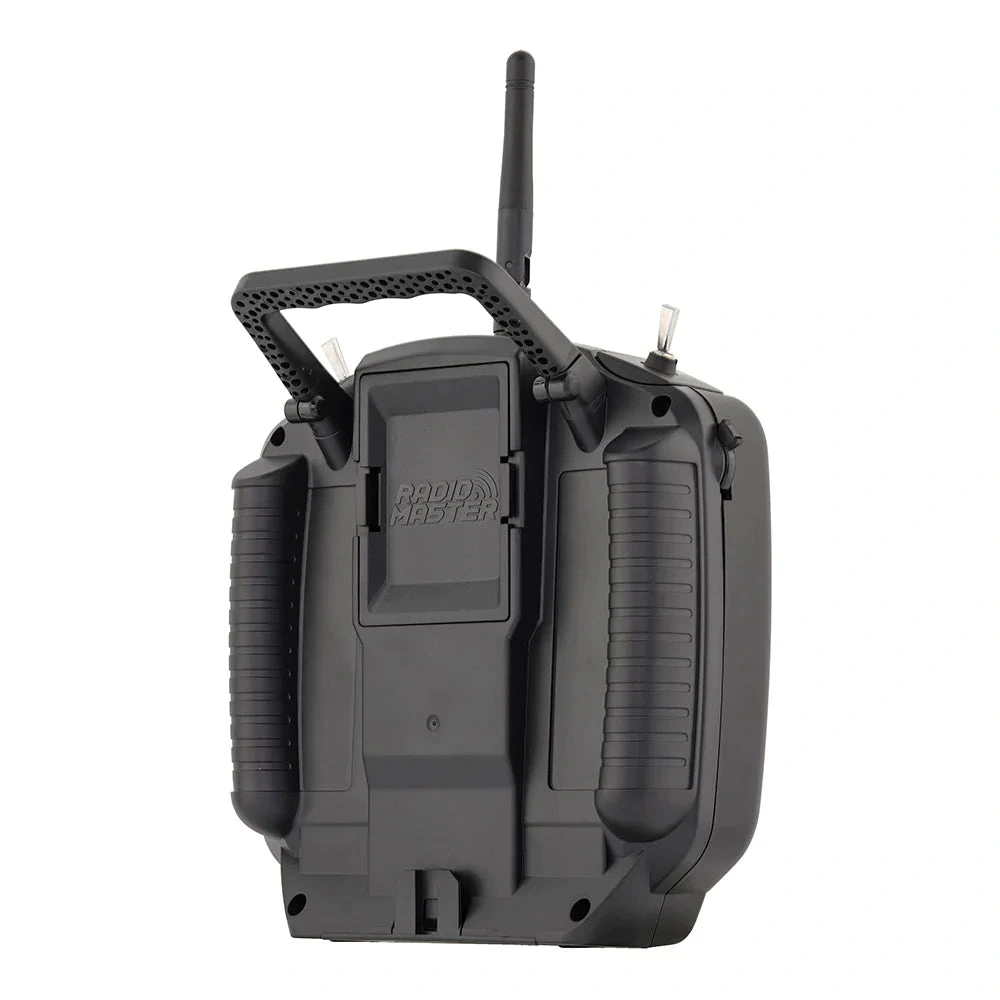

• Updated rear case with comfortable grips

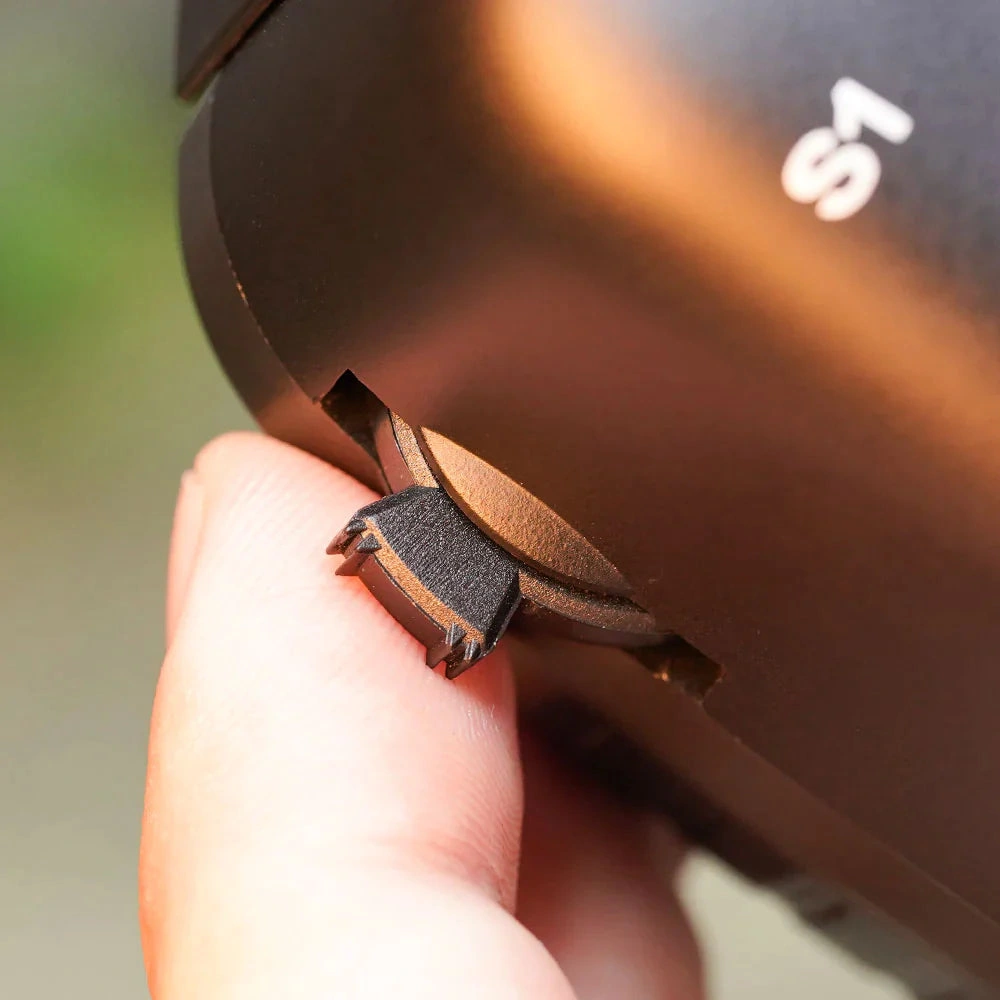

• Improved S1 / S2 slider grip

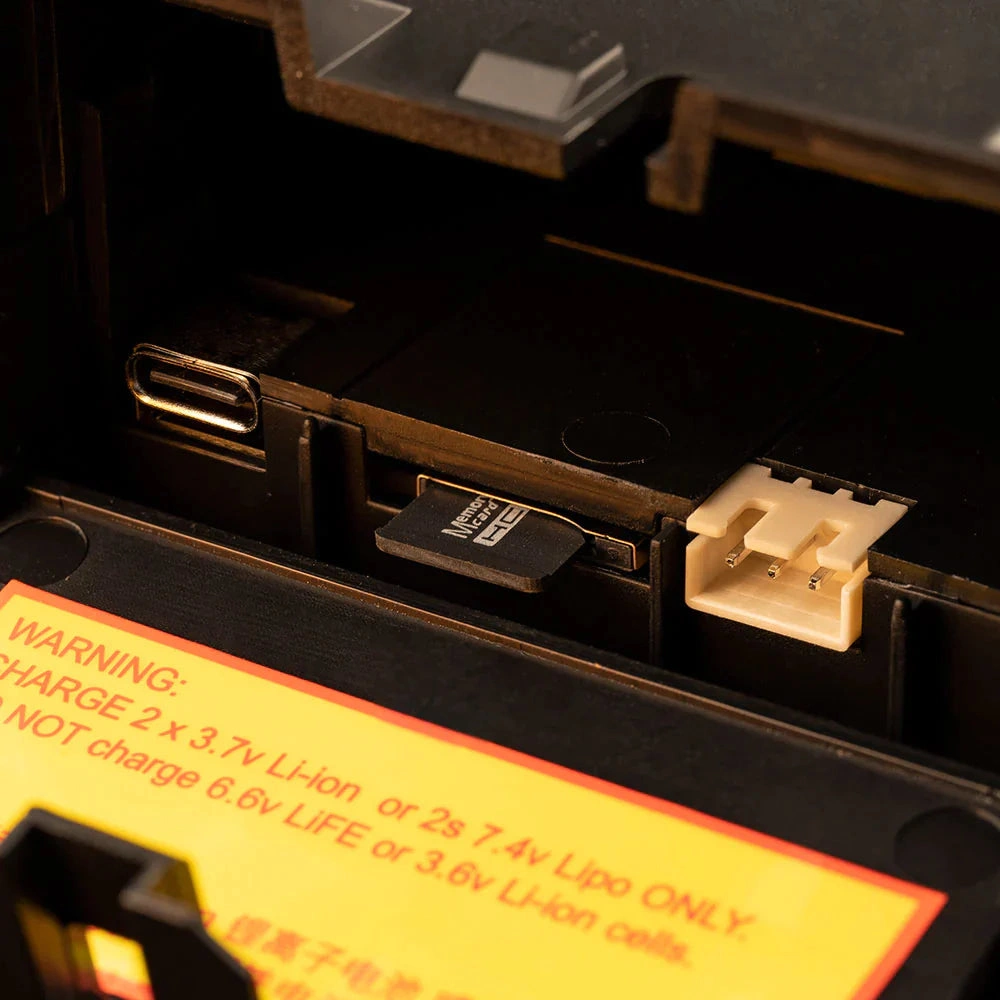

• SD Card included

Specifications

• Frequency: 2.400GHZ-2.480GHZ
• RF Chip: CC2500
• Working Current: [email protected] (ELRS) / [email protected] (CC2500)
• Voltage Range: 6.6-8.4v DC
• Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module) / MPM (RF module)
• Channels: Up to 16 (depending on the receiver)
• Display: 128*64 Monochrome LCD display
• Gimbal: High precision hall gimbals
• External module: JR/FrSKY/Crossfire compatible
• Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
• USB Charging: QC3 USB-C
• SD Card: Included
