Product Detail

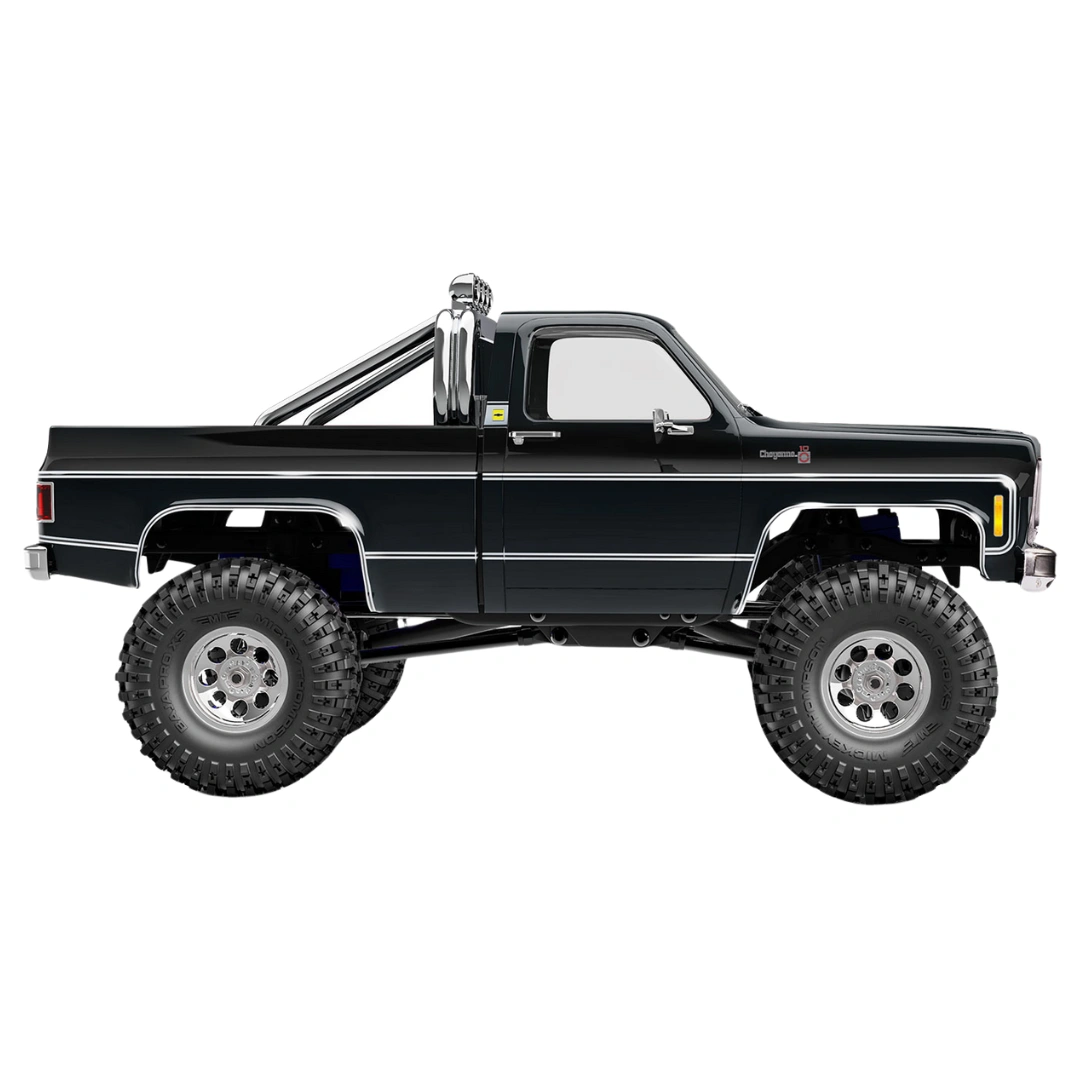

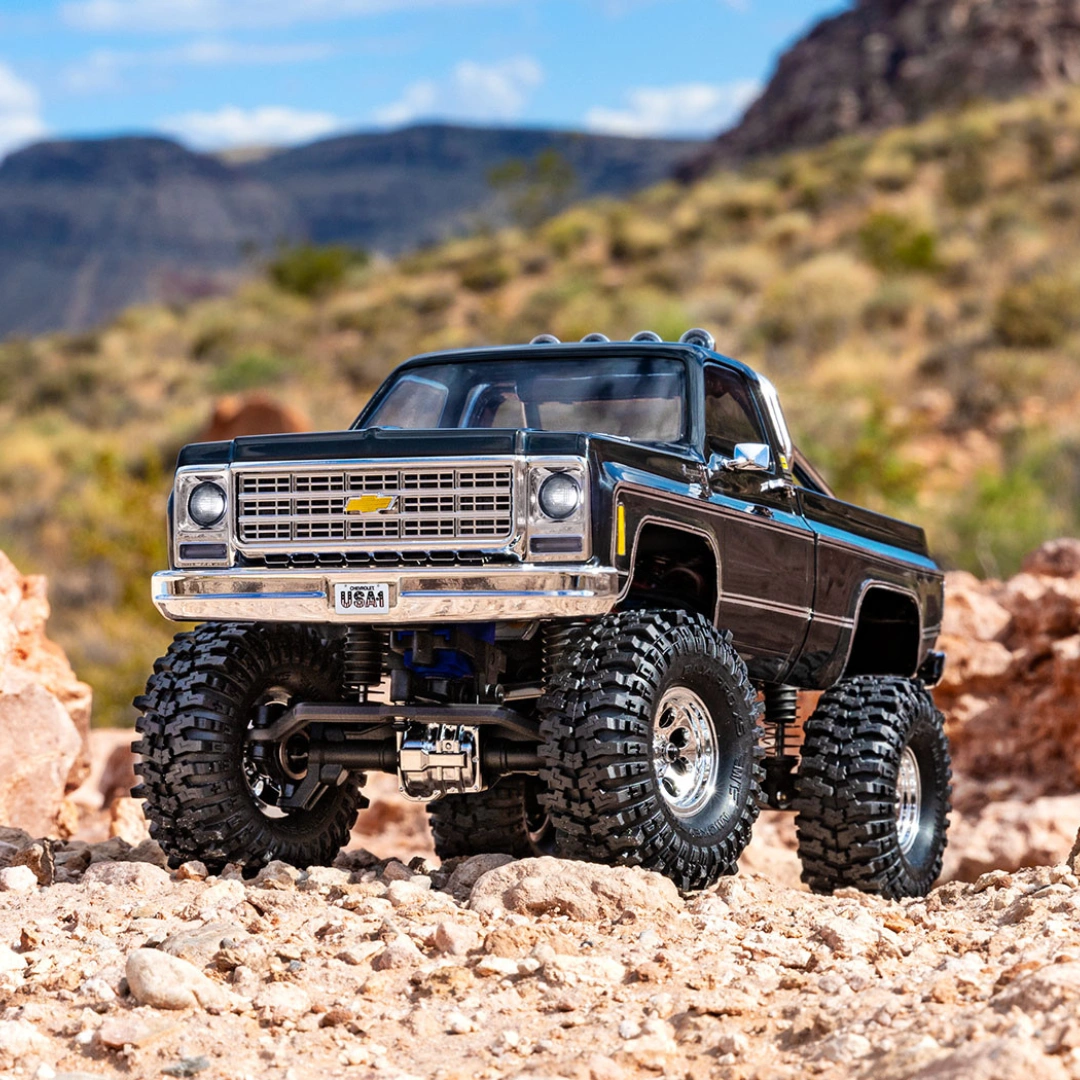

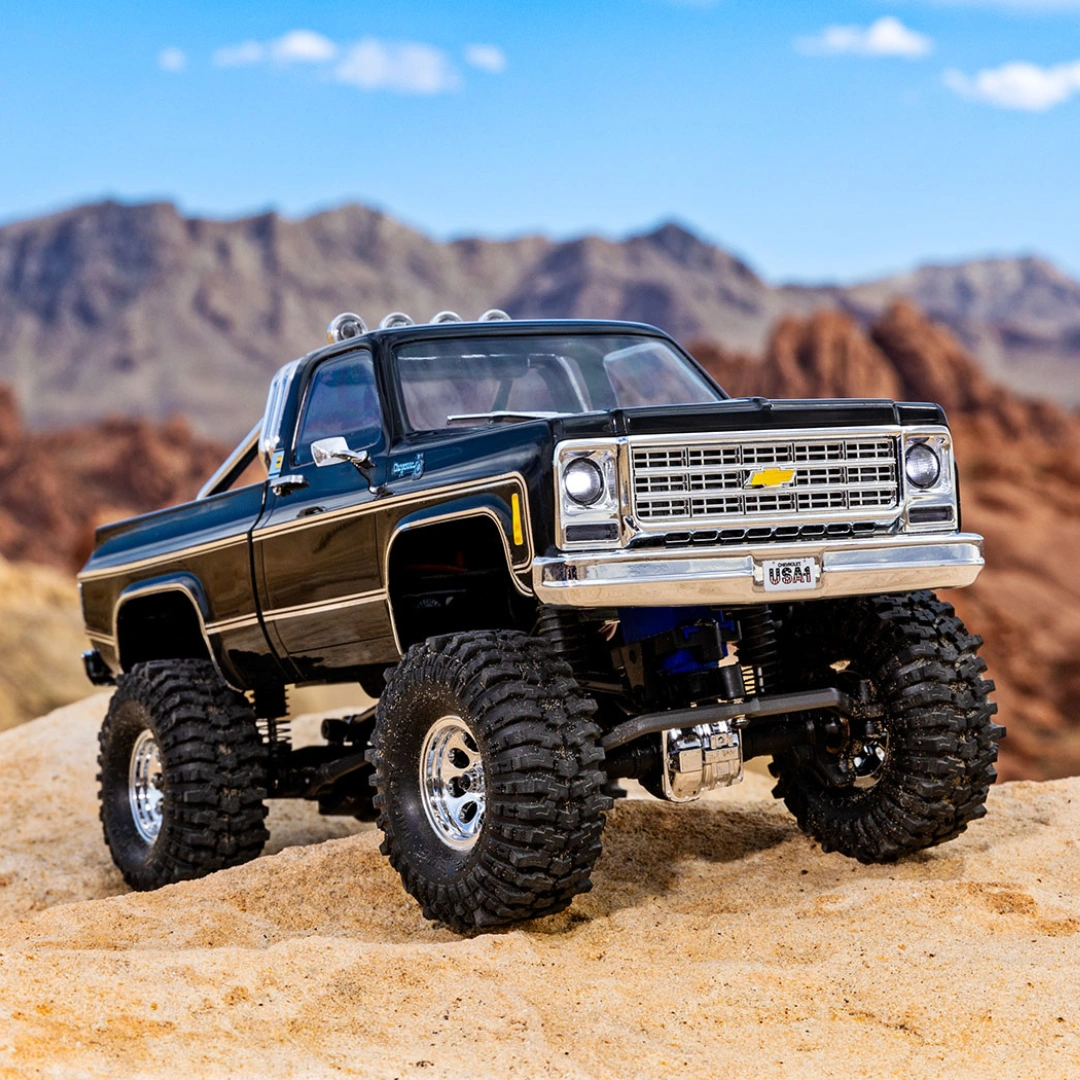

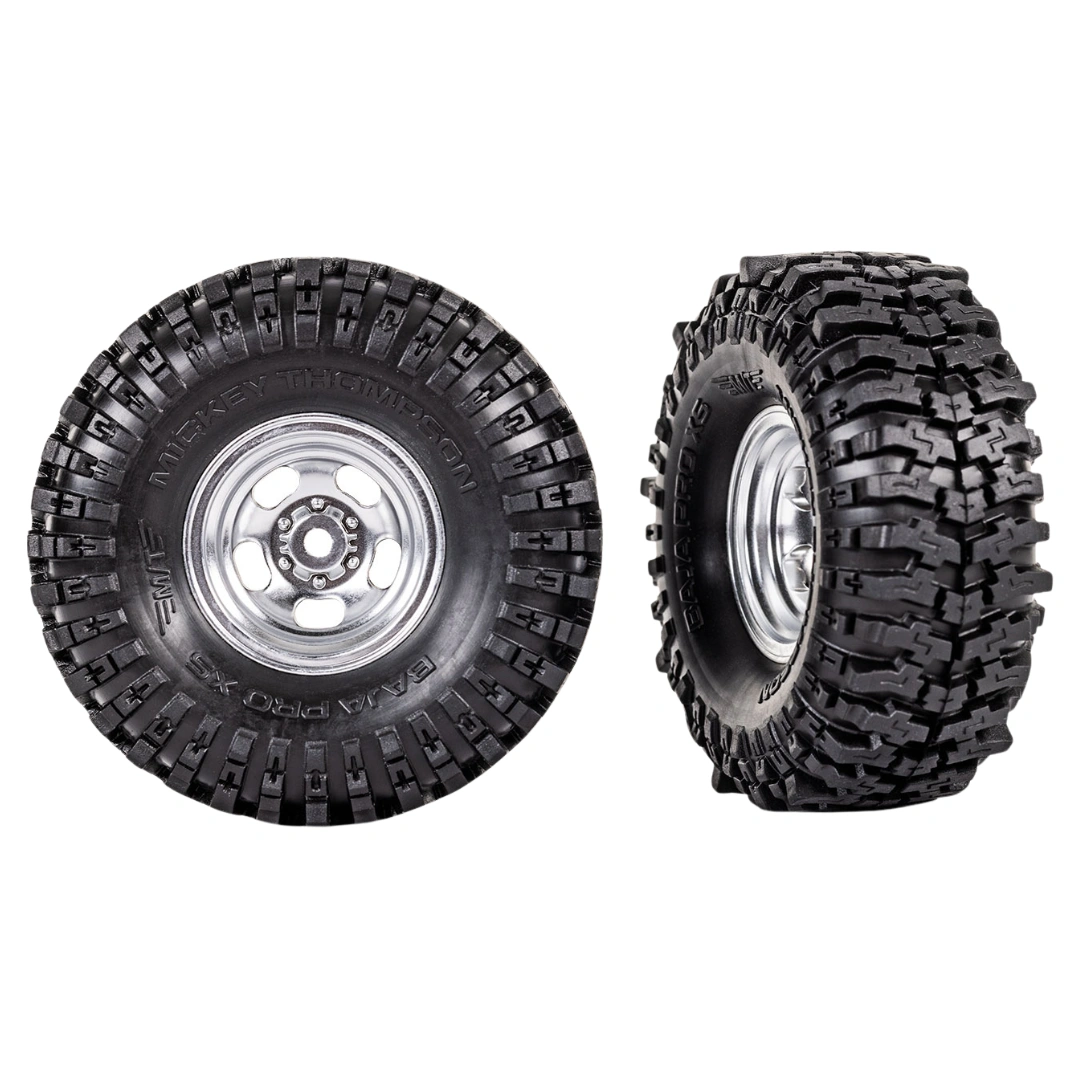

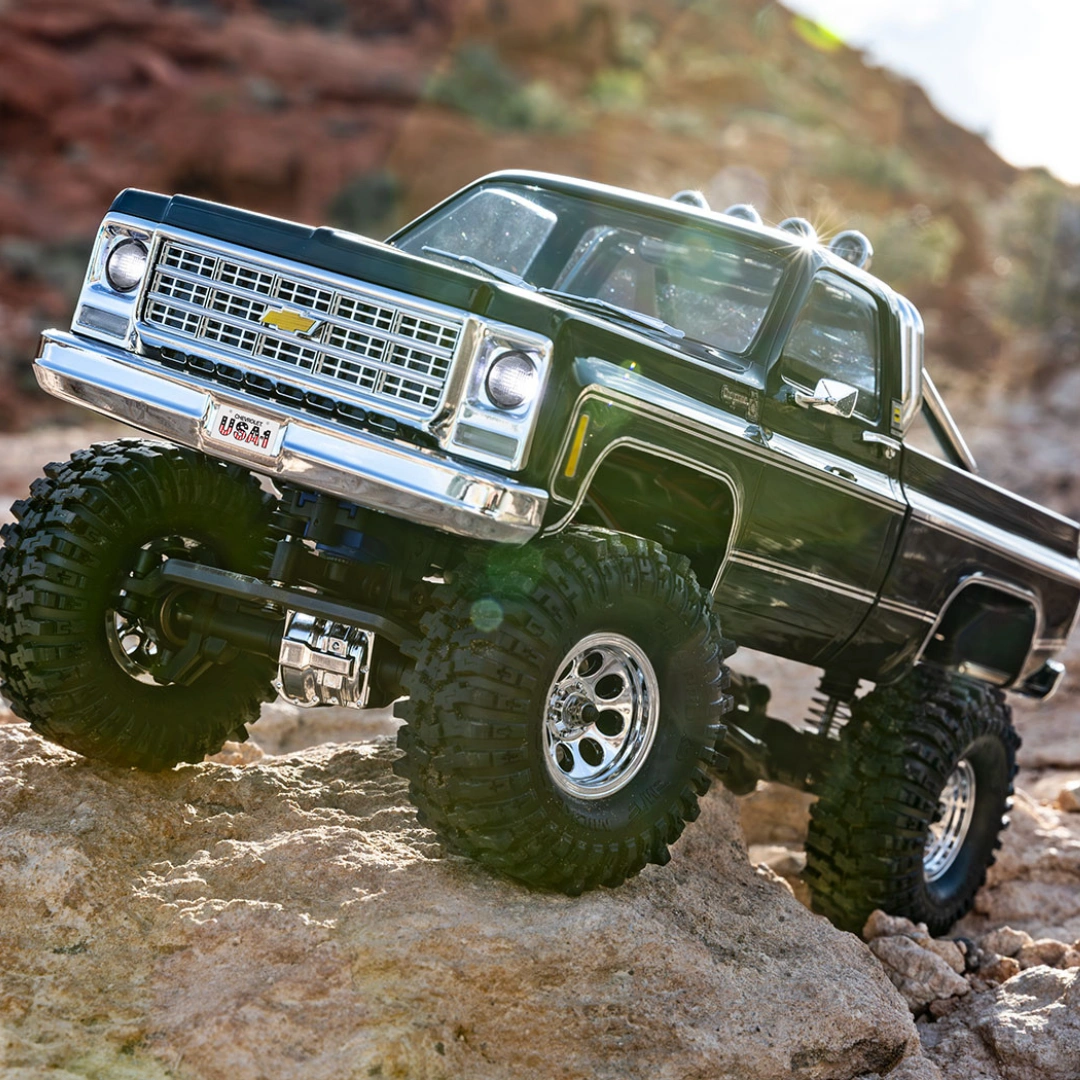

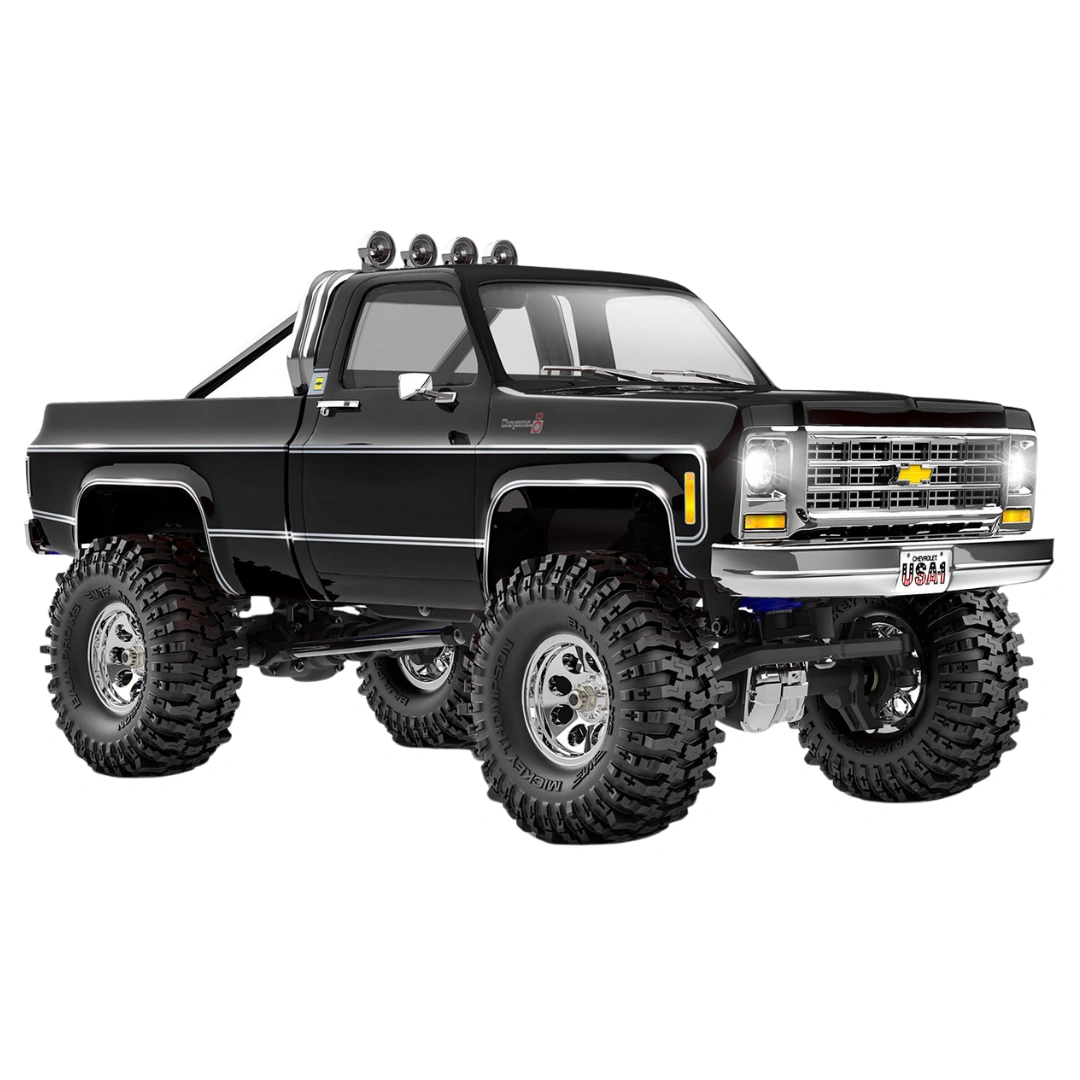

Small-scale adventure takes a big leap in performance with the TRX-4M™ Chevy K10 High Trail™ Edition. The High Trail pickup comes with a pre-installed Long Arm Lift Kit for 35% more center ground clearance than a standard TRX-4M and an extended wheelbase for even more all-terrain capability. Oversize Mickey Thompson® Baja Pro™ XS tires enhance traction and give K10 a dramatic lifted truck profile. From indoor fun to outdoor adventure, TRX-4M Chevy K10 High Trail Edition delivers the quality and performance you expect from Traxxas.

Long Arm Lift Kit

• The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.

Specifications

• Length: 269mm
• Front Track: 127mm
• Rear Track: 127mm
• Center Ground Clearance: 40mm
• Weight (with battery): 468g
• Height: 5.0 inches (127 mm)
• Wheelbase: 6.38 inches (162 mm)
• Shock Length (front and rear): 51mm
• Hex Size: 7 mm
• Differential Type: Fully locked; 2:1 axle ratio
• Wheels (front and rear): 1.0″ x 0.49″ inches (25 x 13mm)
• Tires (front and rear): 2.4″ x 1.0″ inches (62 x 26mm)
• Electronic Control Module: ECM-2.5
• (combo ESC, receiver, lighting control*)
• Motor (electric): Titan 180 87T
• Chassis Structure/Material: Steel ladder frame with Nylon composite crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft-driven 4WD
• Steering: Axle-mounted servo
• Radio System: TQ 2.4 GHz 2-channel transmitter
• Servo: 2065T heavy duty
• Battery Tray: 51mm L X 31mm W

*Requires accessory Pro Scale® LED light kit, sold separately
