Product Detail

To bring its dynamic performance to even more drivers, the MINI-Z AWD is now available in a Ready set. The MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. The chassis design allows space for installing the optional gyro unit (Sold separately:MZW446).

The gyro can be adjusted by turning a small volume on the chassis to reflect the amount of steering correction in response to changes in chassis posture, allowing beginners through to experts to drive to their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Ready set by the unique scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band setting; all at a great value price. Simply set the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD promises a unique world of dramatic racing action for you to experience and enjoy.

Specifications

• Overall length 144.3mm
• Overall width 70.0mm
• Overall height 56.0mm
• Wheelbase 90.0mm (M)
• Tread F: 59.5mm R: 59.5mm
• Chassis used MA-020-N
• Front wheel offset Narrow +1.5mm
• Rear wheel offset Narrow+1.5mm
• Used radio Syncro KT-531P

Kit Contents

• Completely assembled chassis with R/C unit installed
• Factory-finished plastic body with painting and markings

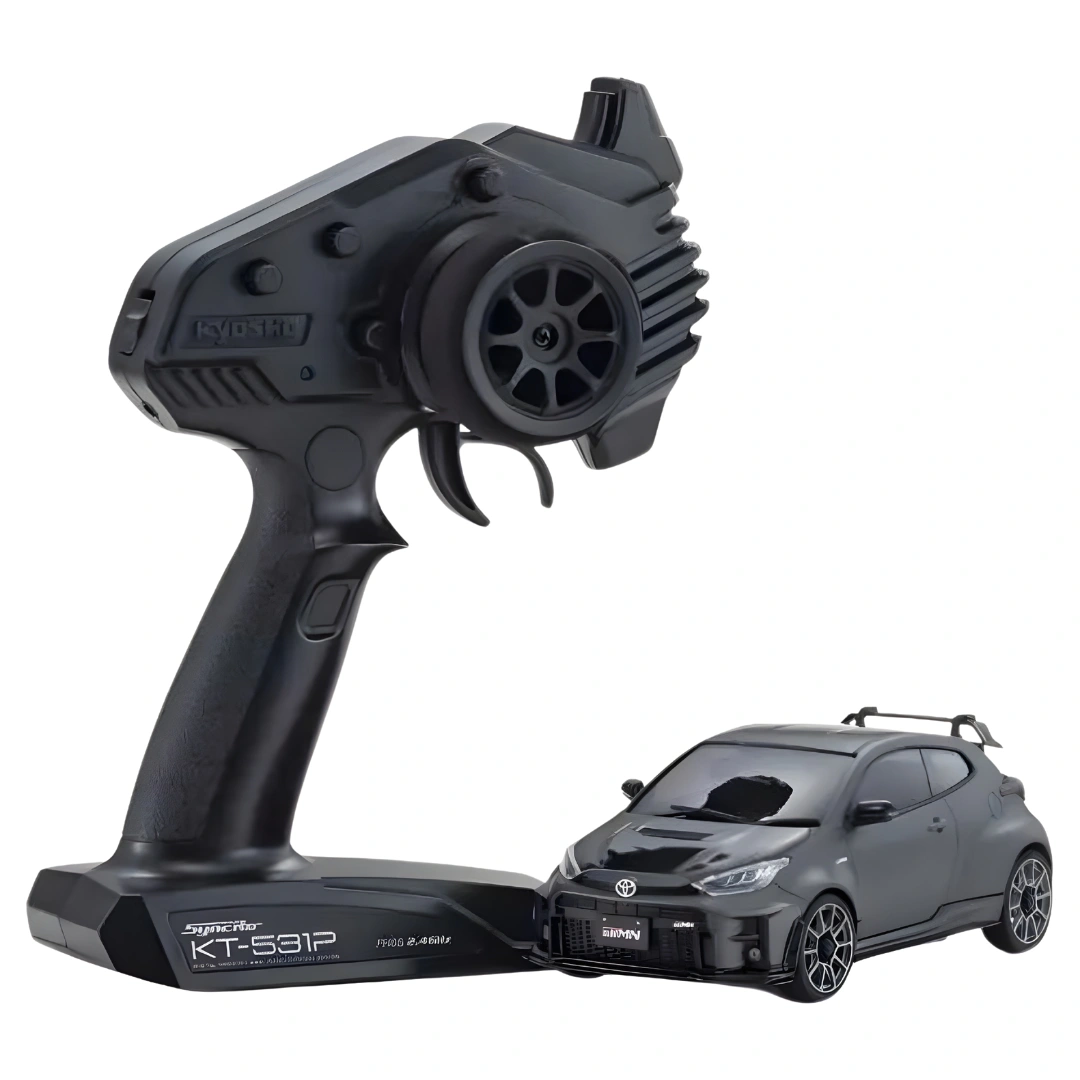

• Syncro KT-531P 2.4GHz transmitter
• Mini pylon
• Pinion gear (15T, 17T, 19T, 21T)
• Spur gear ( 27T, 29T, 31T)
• Spare nut
• Foil wrench
• Pinion removal tool

Needed To Complete

• 4 AAA batteries for transmitter
• 4 AAA batteries (alkaline or nickel metal hydride) for running
