Product Detail

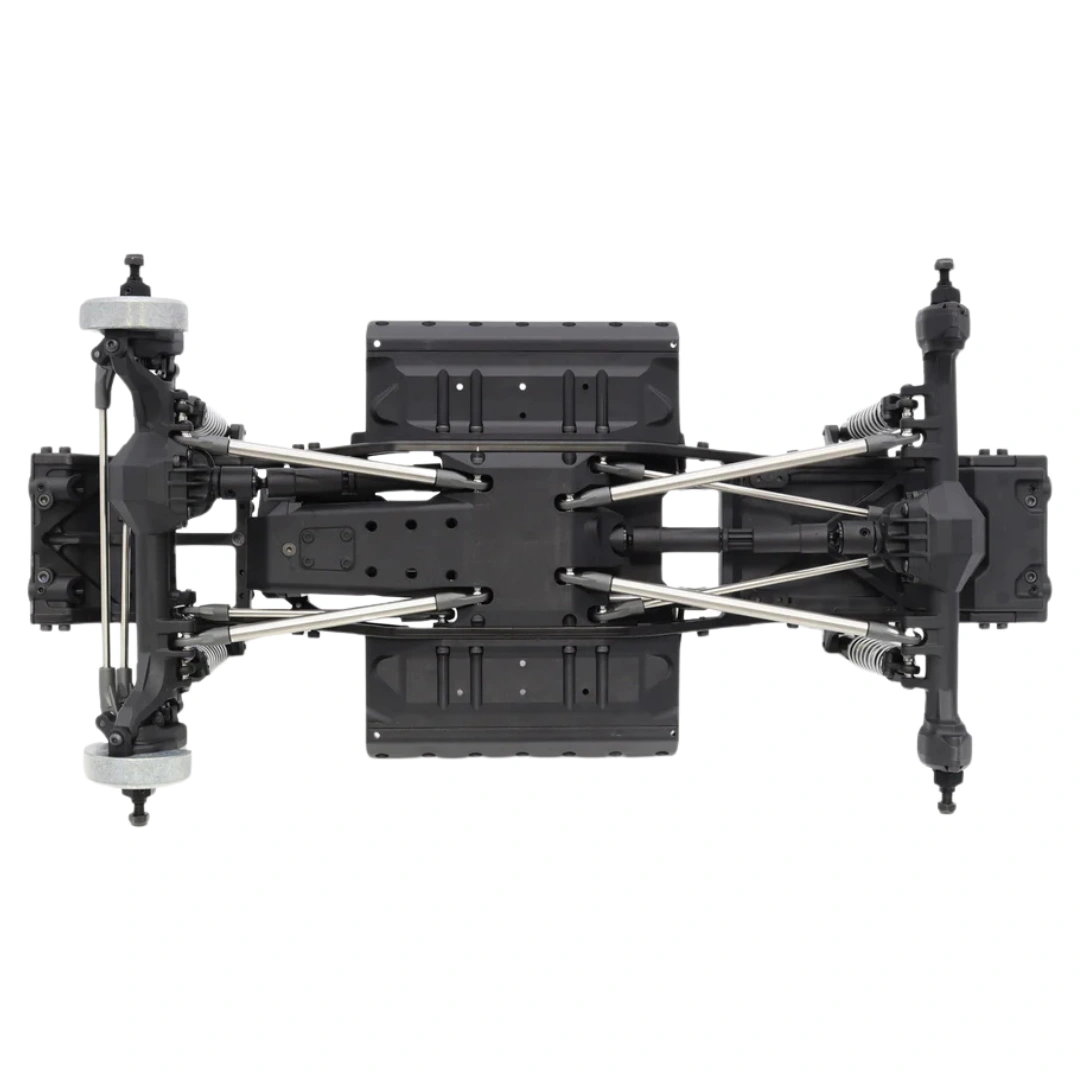

The Vanquish VS4-10 Portal Axle Builders Kit delivers peak performance and durability for demanding off-road builds. Featuring the advanced VFD Twin transmission and F10 portal axles, this kit provides optimal ground clearance, low centre of gravity, and high-strength components for exceptional control and capability on challenging terrain.

Features

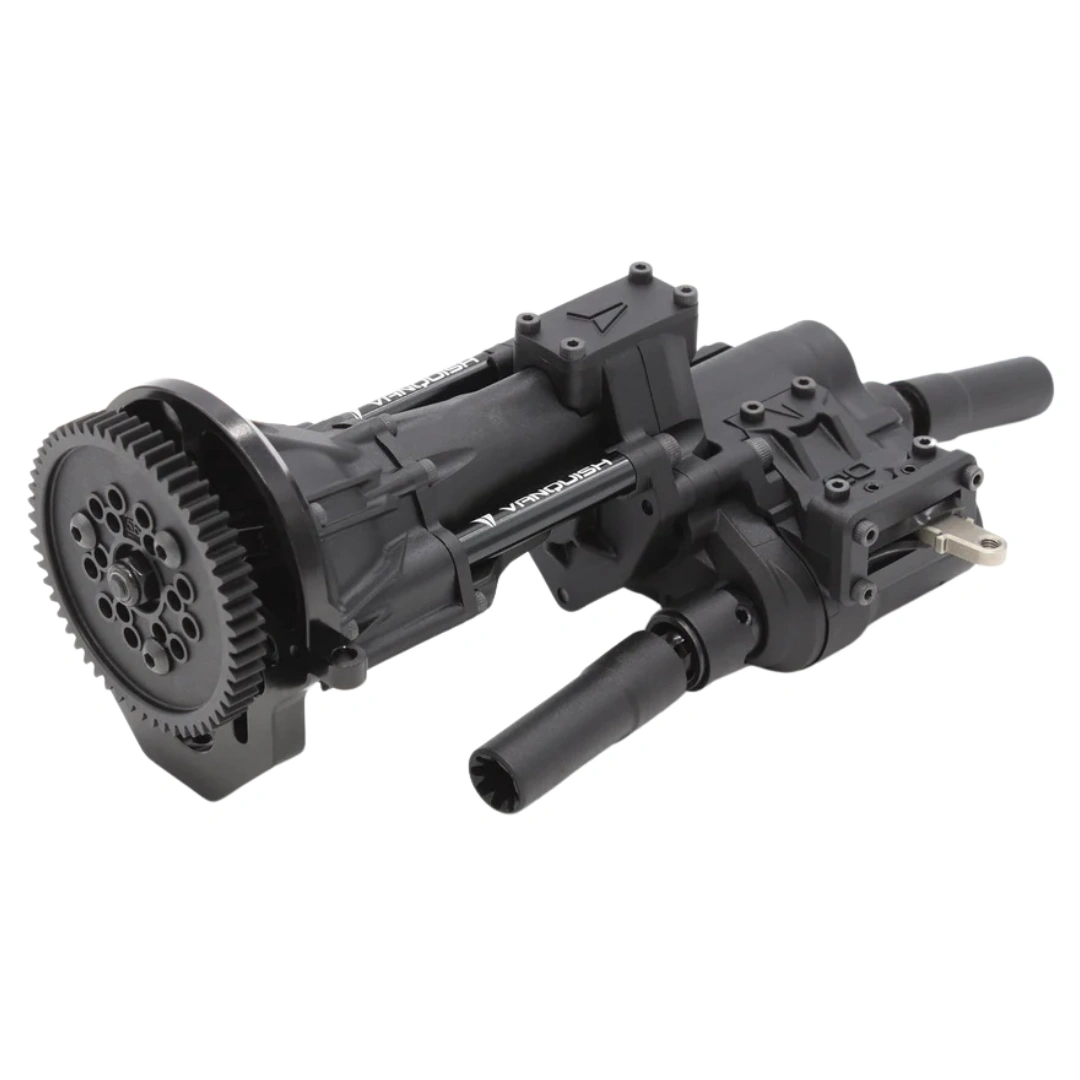

• VFD Twin Transmission with selectable overdrive (6.5% to 46%) and 3-position dig

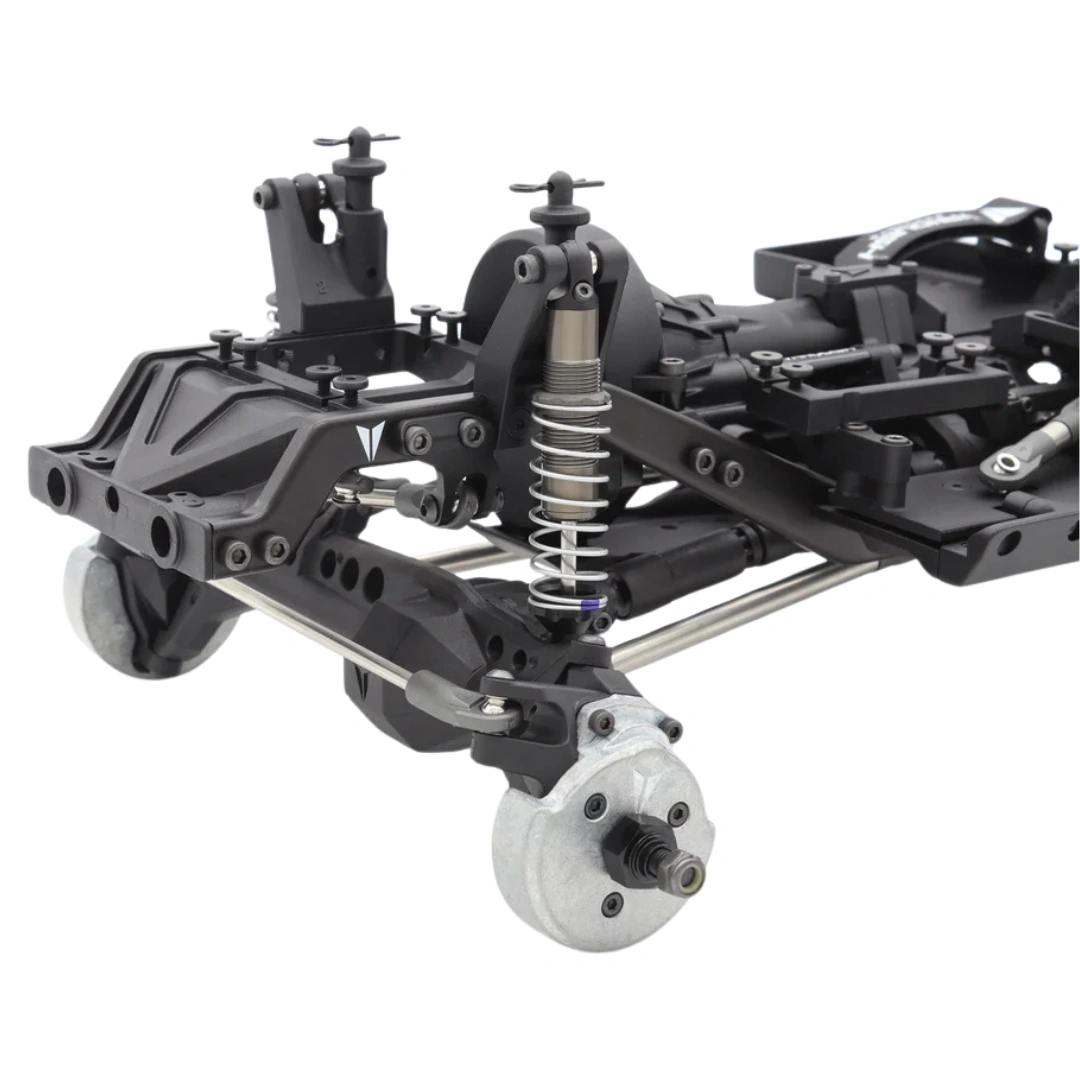

• F10 Portal Axles with brass inserts and alloy knuckle weights for improved stability
• Heavy-duty steel C-channel chassis with integrated crossmembers and servo mounts
• ISD10 driveshafts with CV-style joints for smooth power transfer
• High-clearance design with scale realism throughout chassis and drivetrain

Specifications

• Scale: 1/10
• Axle Gear Ratio: 5.25:1
• Pinion Gear: 15T
• Spur Gear: 52T (32P)
• Width Hex to Hex: 200mm (7.87')
• Wheelbase: 313mm (12.3')
• Overall Front Ratio (6.5% OD): 53.7:1
• Overall Front Ratio (46% OD): 35.8:1
• Overall Rear Ratio: 57.2:1

Includes

• Vanquish VS4-10 Builders Kit with VFD Twin transmission and F10 portal axles
• SC8E 80mm Incision shocks with hard-anodised aluminium bodies
• Threadlock and grease
• 30wt shock oil
• 7mm to 8mm thin wall wheel nut adapter tool

Important Notes

• Transmission dust shield is not fully element-proof; periodic inspection and maintenance recommended
• Compatible with most 540 brushed and brushless motors

Required Items

• ESC
• 540 motor
• Steering servo (Vanquish 20mm servo horn included)
• Battery and charger
• Transmitter and receiver
• X2 standard-size servos for dig and selectable overdrive (standard or low-profile)
• X2 24mm servo horns
• 4-channel transmitter and receiver
• Tools, paint, and body
• 1.9 wheels and tyres (recommended)
